What’s 100Ah 48V LiFePO4 Battery?
A 100Ah 48V LiFePO4 battery is a rechargeable battery pack that provides a substantial amount of energy.
Key Specifications:
- Capacity: 100 Ampere-hours (Ah) – This indicates the battery’s ability to deliver a current of 100 amps for one hour (or a smaller current for a longer duration).
- Voltage: 48 Volts – This is the nominal voltage output of the battery.
Benefits of LiFePO4 Batteries:
- Long Lifespan: LiFePO4 batteries typically have a much longer lifespan than traditional lead-acid batteries, often lasting for thousands of charge-discharge cycles.
- Lightweight and Compact: They are generally lighter and more compact than lead-acid batteries of the same capacity, making them ideal for portable applications.
- Fast Charging: LiFePO4 batteries can often be charged more quickly than lead-acid batteries.
- High Discharge Rate: They can deliver high currents without experiencing significant voltage drop.
Common Applications:
- Electric Vehicles: For powering electric cars, motorcycles, or scooters.
- Renewable Energy Systems: As storage for solar or wind power.
- Off-Grid Power Systems: For powering homes or cabins in remote areas.
- Marine Applications: For powering boats or yachts.
- Industrial Equipment: For powering tools or machinery.
How are LiFePO4 48V 100Ah Batteries manufactured?
The production of LiFePO4 48V 100Ah batteries involves several key steps:
-
Raw Material Procurement:
- Lithium Iron Phosphate (LiFePO4): This is the primary active material in the battery. It’s typically synthesized from lithium carbonate, iron phosphate, and carbon black.
- Carbon Black: Conductive material that facilitates electron flow within the battery.
- Binder: A polymer that holds the active materials together.
- Current Collector: A conductive metal foil (usually aluminum or copper) that collects electrons from the active materials.
-
Cathode Production:
- Mixing: The LiFePO4, carbon black, binder, and conductive additives are mixed together to form a slurry.
- Coating: The slurry is coated onto the current collector foil.
- Drying: The coated foil is dried to remove the solvent.
- Calendering: The dried coating is pressed to improve its density and conductivity.
-
Anode Production:
- Graphite: The anode material is typically graphite.
- Similar Process: The anode is produced using a similar process to the cathode, involving mixing, coating, drying, and calendering.
-
Separator Production:
- Microporous Membrane: A thin, porous membrane is produced from polypropylene or polyethylene. This separator prevents direct contact between the anode and cathode while allowing ions to pass through.
-
Cell Assembly:
- Stacking: The cathode, anode, and separator are stacked in a predetermined order.
- Electrolyte Addition: An electrolyte solution, typically containing lithium salts dissolved in an organic solvent, is introduced into the cell.
- Sealing: The cell is sealed to prevent electrolyte leakage and contamination.
-
Formation:
- Cycling: The battery is subjected to repeated charge-discharge cycles to activate the materials and stabilize its performance.
-
Testing and Quality Control:
- Performance Evaluation: The battery’s capacity, voltage, rate capability, and other performance parameters are tested.
- Safety Testing: The battery is tested for safety under various conditions, including overcharging, overdischarging, and short circuit.
-
Packaging and Shipping:
- Packaging: The batteries are packaged individually or in groups, depending on their intended use.
- Shipping: The packaged batteries are shipped to customers or distribution centers.
What are the applications of LiFePO4 48v 100Ah Batteries？
LiFePO4 48V 100Ah batteries have a wide range of applications due to their high energy density, long lifespan, and safety:
Transportation:
- Electric Vehicles (EVs): As a primary power source for electric cars, motorcycles, and scooters.
- Hybrid Vehicles: As a secondary power source for regenerative braking and auxiliary systems.
Renewable Energy:
- Energy Storage Systems (ESS): To store excess energy generated from solar panels or wind turbines.
- Off-Grid Systems: For powering homes or cabins in remote areas.
Industrial Applications:
- Backup Power: For critical equipment and systems in factories, hospitals, and data centers.
- Uninterruptible Power Supply (UPS): To provide continuous power during power outages.
- Portable Power Tools: For heavy-duty tools like drills, saws, and grinders.
Marine Applications:
- Electric Boats: As the primary power source for electric boats and yachts.
- Marine Accessories: For powering marine electronics, lights, and other equipment.
Other Applications:
- RVs and Campers: For powering appliances, lights, and heating systems.
- Medical Equipment: For powering portable medical devices.
- Security Systems: For powering security cameras and alarms.
What’s the advantages of LiFePO4 48V 100Ah Batteries？
LiFePO4 batteries, especially in the 48V 100Ah configuration, offer several significant advantages over other battery technologies:
1. Long Lifespan:
- High Cycle Life: LiFePO4 batteries can withstand thousands of charge-discharge cycles without significant capacity loss, making them ideal for applications that require frequent cycling.
- Reduced Maintenance: Compared to lead-acid batteries, LiFePO4 batteries require less maintenance, such as equalizing charges or water replenishment.
2. High Energy Density:
- Compact Size: For a given capacity, LiFePO4 batteries are typically smaller and lighter than lead-acid batteries, making them suitable for applications where space and weight are constraints.
3. Fast Charging:
- Rapid Recharge: LiFePO4 batteries can be charged at higher rates compared to lead-acid batteries, reducing charging time and improving efficiency.
4. Safe Operation:
- Thermal Stability: LiFePO4 batteries are less prone to thermal runaway and are generally safer in case of abuse or overheating.
- Reduced Risk of Fire: They have a lower risk of fire compared to some other battery chemistries, especially in extreme conditions.
5. Wide Operating Temperature Range:
- Performance in Extremes: LiFePO4 batteries can operate effectively in a wider temperature range, making them suitable for various environments.
6. High Discharge Rate:
- Power Delivery: LiFePO4 batteries can deliver high currents without significant voltage drop, making them suitable for applications that require bursts of power.
7. Environmentally Friendly:
- Reduced Toxicity: LiFePO4 batteries contain fewer toxic materials compared to some other battery chemistries, making them a more environmentally friendly option.
In summary, LiFePO4 48V 100Ah batteries offer a combination of long lifespan, high energy density, fast charging, safety, and versatility, making them an excellent choice for a wide range of applications.
PDF Download
→XINTechPro Deep cycle solar energy storage batteries 48V 100AH Datasheet
The 48V 100Ah LiFePO4 battery is poised to have a promising future in the battery market due to its numerous advantages and the role played by the XINTechPro factory in its production. LiFePO4 batteries are gaining popularity as a safer and more efficient alternative to traditional lead-acid batteries.
The LiFePO4 chemistry offers several advantages, including high energy density, long cycle life, and excellent thermal stability. These batteries can store a significant amount of energy, allowing for longer operation times and increased power output. With their extended cycle life, LiFePO4 batteries can endure hundreds or even thousands of charge-discharge cycles, making them a reliable and durable energy storage solution.
One of the key players in producing high-quality LiFePO4 batteries is the XINTechPro factory. They possess advanced manufacturing facilities and expertise in battery production. The factory ensures strict quality control measures throughout the manufacturing process, resulting in reliable and safe batteries that meet industry standards.
The XINTechPro factory’s commitment to innovation plays a crucial role in the advancement of sustainable energy solutions. They continuously invest in research and development to improve battery performance and explore new applications. By staying at the forefront of battery technology, they contribute to the overall growth and adoption of LiFePO4 batteries in various industries.
Furthermore, the XINTechPro factory emphasizes the importance of certifications and licenses. They adhere to international standards and regulations, ensuring their batteries meet safety and quality requirements. Certifications such as ISO 9001 and CE demonstrate their commitment to delivering reliable and compliant products.
The 48V 100Ah LiFePO4 battery finds applications in a wide range of industries. It is suitable for renewable energy storage, electric vehicles, UPS systems, telecom infrastructure, off-grid power systems, and marine/RV applications. Its high capacity and fast charging capabilities make it ideal for demanding energy storage needs.
In conclusion, the 48V 100Ah LiFePO4 battery is expected to have a bright future in the battery market. Its advantages, including high capacity, long cycle life, and safety, make it a superior choice over traditional lead-acid batteries. The XINTechPro factory’s expertise, advanced production facilities, and commitment to innovation are instrumental in producing high-quality LiFePO4 batteries that meet customer demands. Their adherence to certifications and licenses further ensures reliability and customer satisfaction. With their contributions, LiFePO4 batteries are set to revolutionize the energy storage landscape and drive the transition towards a sustainable future.

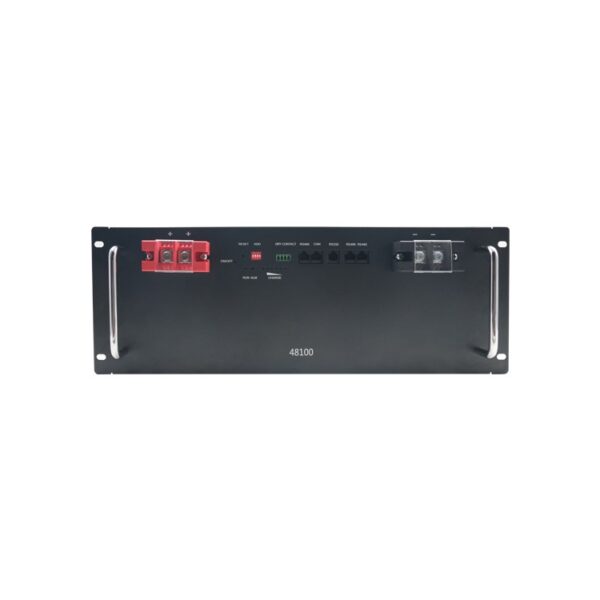

48V 100Ah LiFePO4 Battery Packs Datasheet
| Item | LiFePO4 battery Basic Parameters |
| Nominal Voltage | 51.2V |
| Rated Capacity | 100AH @0.2C to 40V |
| Stored energy | 5120Wh |
| Cycle life@100%DOD | >3000 Cycles@100%DOD
>4000 Cycles@80%DOD >7000 Cycles@50%DOD |
| Approx. Weight | 49.5 kg |
| Internal Resistance | ≤70.0 mΩ |
| Max. Charge Current | 100 A |
| Max. Discharge Current | 100 A |
| Charge Cut-off Voltage | 58.4V |
| Discharge Cut-Off Voltage | 40V |
| Dimensions | L483mm×W459mm×H175mm |
| Series & Parallel Connection | Maxium 16 units in parallel Connection |
| Operating Temperature Range Charge Discharge Storage |
32° F (0°C) to 113° F (45°C) -4° F (-20°C) to 140° F (60°C) -4° F (-20°C) to 140° F (60°C) |
| Self-Discharge Rate | ≤3%/month @ 25 。C |
| Life Expectancy (years) | 10 years @ 25 。C |
| Communication Port | RS485, RS2332, CAN |
| Applications | Electric Vehicles (EVs); Energy Storage Systems (ESS); Portable Electronics; Backup Power Solutions; Renewable Energy Integration; Off-Grid Power Systems; Marine and RV Applications; Industrial and Commercial Applications |
