What are 20kW All-in-One Batteries?
A 20kW all-in-one battery system is a self-contained energy storage solution designed to provide significant power backup and support renewable energy integration. These systems typically include:
- High-capacity batteries: Often lithium-ion batteries, offering high energy density and long cycle life.
- Integrated inverter: Converts DC power from the batteries to AC power for household use.
- Battery management system (BMS): Monitors battery health, safety, and performance.
- Solar charge controller: Optimizes charging from solar panels.
What are Key Benefits of 20kW All-in-One Batteries?
- Off-grid power: Can power your entire home during grid outages or in off-grid locations.
- Energy independence: Reduces reliance on the grid and lowers energy costs.
- Renewable energy storage: Stores excess solar or wind energy for later use.
- Backup power: Provides essential power during emergencies.
- Peak shaving: Can help reduce peak demand charges from your utility.
What are the Applications of 20kW All-in-One Batteries?
- Residential use: Powering homes during outages or for off-grid living.
- Commercial use: Providing backup power for businesses, such as restaurants or retail stores.
- Remote locations: Powering cabins, farms, or other off-grid properties.
What are the factors to Consider When Choosing a 20kW All-in-One Battery System?
- Battery chemistry: Lithium-ion batteries are the most common choice for their high energy density and long life.
- Inverter capacity: Ensure the inverter can handle the power demands of your home or business.
- Scalability: Consider whether the system can be expanded to accommodate future needs.
- Efficiency: Look for systems with high efficiency ratings to minimize energy loss.
- Warranty and support: A good warranty and reliable customer support are essential.
How are 20kw All-in-One Batteries manufactured?
The manufacturing of 20kWh all-in-one batteries involves a complex series of steps, combining precision engineering and advanced technology. Here’s a general overview of the process:
1. Raw Material Procurement:
- Battery cells: Lithium-ion cells are typically produced in specialized factories using a process involving cathode, anode, and electrolyte materials.
- Inverter components: Semiconductors, transformers, and other components are sourced from various suppliers.
- BMS components: Microcontrollers, sensors, and other electronic components are procured.
2. Battery Pack Assembly:
- Cell grouping: Individual cells are grouped together into modules based on the desired voltage and capacity.
- Interconnection: Cells within a module are connected using busbars or wires to create a series or parallel configuration.
- Thermal management: Cooling systems, such as fans or heat sinks, are integrated to prevent overheating.
3. Inverter Assembly:
- Component placement: Electronic components like transistors, capacitors, and inductors are mounted on printed circuit boards (PCBs).
- Soldering: Components are soldered to the PCBs to create electrical connections.
- Testing: The inverter is tested to ensure proper functionality and efficiency.
4. BMS Assembly:
- PCB design: The BMS control board is designed to monitor battery voltage, temperature, and state of charge.
- Component placement: Sensors, microcontrollers, and other components are mounted on the BMS PCB.
- Programming: The BMS software is programmed to manage battery safety and performance.
5. Integration:
- Battery pack connection: The assembled battery pack is connected to the inverter and BMS.
- Wiring and cabling: Electrical connections are made between the battery pack, inverter, and BMS.
- Enclosure: The entire system is enclosed in a protective housing to protect components and ensure safety.
6. Testing and Quality Control:
- Functional testing: The complete system is tested under various conditions to ensure it meets performance specifications.
- Safety testing: Safety tests are conducted to verify that the battery system is safe for use.
- Quality control: Quality control measures are implemented throughout the manufacturing process to ensure product consistency.
7. Packaging and Shipping:
- Packaging: The finished battery system is packaged for transportation, often in specialized containers to protect it during shipping.
- Shipping: The battery system is shipped to the customer or distribution center.

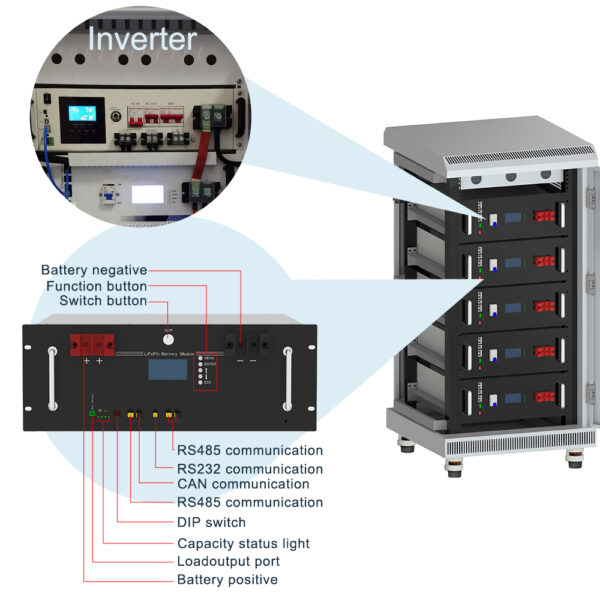

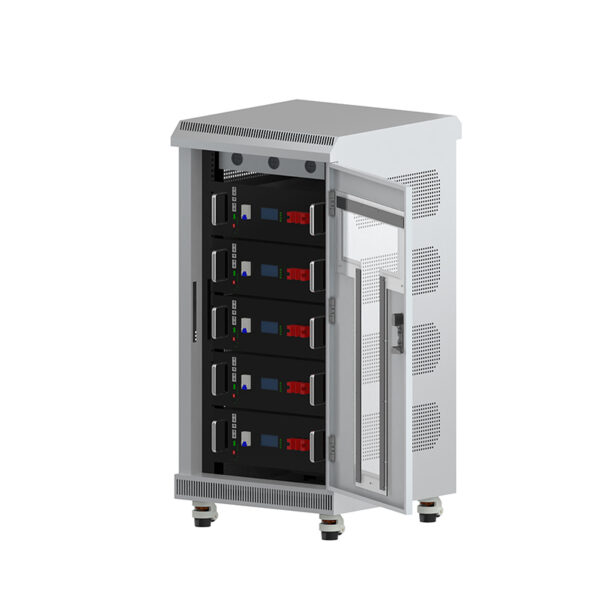

The 20kWh All-in-one Stackable Battery Storage System by XINTechPro is a testament to their strength and expertise in the field of energy storage solutions. With its 51.2V 400AH LiFePO4 battery packs, this system offers a reliable backup power solution for off-grid solar systems.
XINTechPro’s stackable design allows for easy expansion, enabling users to scale up their energy storage capacity as needed. This flexibility makes it suitable for a wide range of applications, including residential, commercial, and industrial settings. Whether it’s powering homes, small businesses, or remote off-grid installations, this system delivers dependable backup power.
The LiFePO4 battery technology employed by XINTechPro ensures exceptional energy density, long cycle life, and enhanced safety. These batteries are known for their high performance, stability, and resistance to thermal runaway, making them a reliable choice for energy storage applications.
The all-in-one design of this system simplifies installation and operation. It integrates various components, including the battery packs, inverter, and battery management system (BMS), into a single unit. This streamlined approach saves space and reduces complexity, making it convenient for users.
The BMS system plays a crucial role in ensuring the safety and optimal performance of the battery storage system. It provides comprehensive monitoring and protection features, including overcurrent protection, short-circuit protection, and temperature detection protection. This advanced BMS system guarantees the longevity and reliability of the battery packs, while also safeguarding against potential risks.
Overall, the 20kWh All-in-one Stackable Battery Storage System by XINTechPro offers a powerful and versatile solution for backup power in off-grid solar systems. With its high-performance LiFePO4 battery packs, user-friendly design, and robust BMS system, it is well-equipped to meet the energy storage needs of various applications, delivering reliable and efficient power whenever it’s needed.
The 5KW/20KWH LiFePO4 Battery Energy Storage System has a built-in 5KW inverter and 20KWH LiFePO4 server rack battery batteries, which can be used directly in a home energy storage system to power your home and to store energy for normal use in places where power is low.
Basic Parameters
| Item | LiFePO4 battery Basic Parameters |
| Model | All-in-One ESS20 |
| Battery module quantity | 4 |
| Max Output Power (Battery) | 20kwh |
| Inverter quantity | 1 |
| Inverter Power | 5kw |
| Nominal Voltage | 51.2V |
| Rated Capacity | 400AH @0.5C to 40V |
| Stored energy | 20480Wh |
| Cycle life@100%DOD | 6000 Cycles |
| Approx. Weight | 240kg |
| Internal Resistance | ≤70.0 mΩ |
| Max. Charge Current | 400 A |
| Max. Discharge Current | 400 A |
| Charge Cut-off Voltage | 58.4V |
| Discharge Cut-Off Voltage | 41.2V |
| Dimensions | 600*600*1100mm |
| Low temperature self heating | Avaliable(0~-20°C) |
| Operating Temperature Range | |
| Charge | -4°F (-20°C) to 113°F (45°C) |
| Discharge | -4°F (-20°C) to 140°F (60°C) |
| Recommended | 59°F (15°C) to 95°F (35°C) |
| Self-Discharge Rate | ≤3%/month |
| Life Expectancy (years) | 10 years @25°C in 80%DOD |
| Self Discharge | Approx. 3% per month @ 25°C |
| Long Term Storage | Charge every 6 months |
| Short Circuit Protection | Automatically recover after removal of short |
| Communication port | RS485/RS232/CAN |

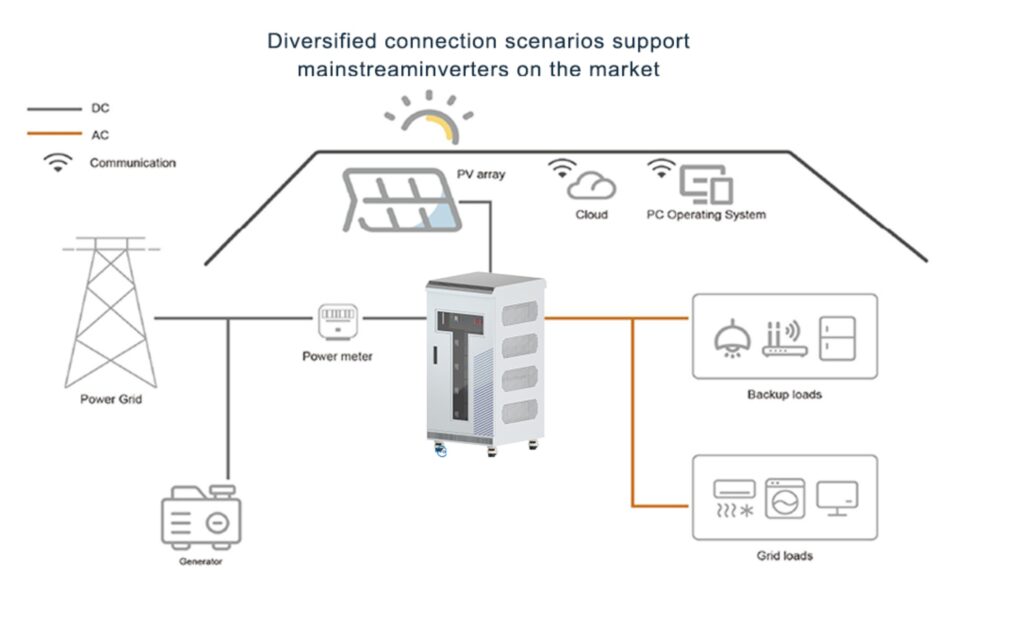

| Applications | ON Grid (Self consumption / ON Grid + Backup / Backup) and Off Grid |
Features
1. LCD display optional, real-time understanding of battery voltage and capacity.
2. 400A continuous output voltage can continuously charge big-power devices.
3. The intelligent BMS system can accurately control the battery to improve the lifespan, no explosion, no fire.
4. Drop-in replacement for heavy lead-acid(AGM /GEL) battery，1/3 weight but same capacity.
5. 2000 times cycle life@100% DOD , 7000 times cycle life@50% DOD , 10 years design lifespan.
6. Maintenance-free, fully sealed, and waterproof.
Intelligent Battery Management System(BMS)
– Over charge protection function
– Over discharge protection function
– Over current protection function
– Short protection function
– Over temperature protection function
– Automatic cell balance function
– Cell balance function
